Sectional Sofa Dimensions Guide: How to Measure Before You Buy
by Visit Furniture
A sectional can fit a room well or create daily clearance problems. The difference usually comes down to measuring the room, the traffic paths, and the sofa itself before purchase.
The key numbers to check are overall width, overall depth, chaise or return length, height, seat depth, and diagonal depth for delivery. You also need enough open space for walking, nearby tables, and door swing.
What sectional dimensions matter most
When comparing sectionals, focus first on the footprint. That is the amount of floor space the sectional occupies once assembled.
The most useful dimensions are listed below.
| Dimension | What it means | Why it matters |
|---|---|---|
| Overall width | Length from one outer arm or end to the other | Shows how much wall or open-room span the sectional uses |
| Overall depth | Front-to-back depth of the main sofa section | Affects how far the sectional projects into the room |
| Chaise length or return length | How far the extended side projects out | Determines legroom and walkway clearance |
| Height | Floor to top of back | Important for windows, sight lines, and delivery |
| Seat depth | Front edge of seat to back cushion | Changes sitting comfort and posture |
| Diagonal depth | Diagonal measurement from top back corner to front lower corner | Helps confirm the piece can pass through doorways and halls |
Many shoppers use width alone, but that often misses the true issue. The projecting side of an L-shaped sectional is what usually interferes with walkways, coffee tables, or nearby chairs.
How to measure your room for a sectional
Start with the room itself before looking at sofa dimensions. Measure the length and width of the usable floor area, then mark fixed features such as doors, windows, radiators, vents, floor outlets, and fireplace hearths.
Next, identify where people need to walk. Most rooms work better when you preserve about 30 to 36 inches for main walkways, though tighter layouts may allow slightly less in low-traffic spots.
- Measure the full room length and width.
- Measure the wall where the sectional may sit.
- Mark door swing and window trim that may affect placement.
- Measure the distance to a TV, fireplace, or opposite seating.
- Reserve walking clearance around the sectional.

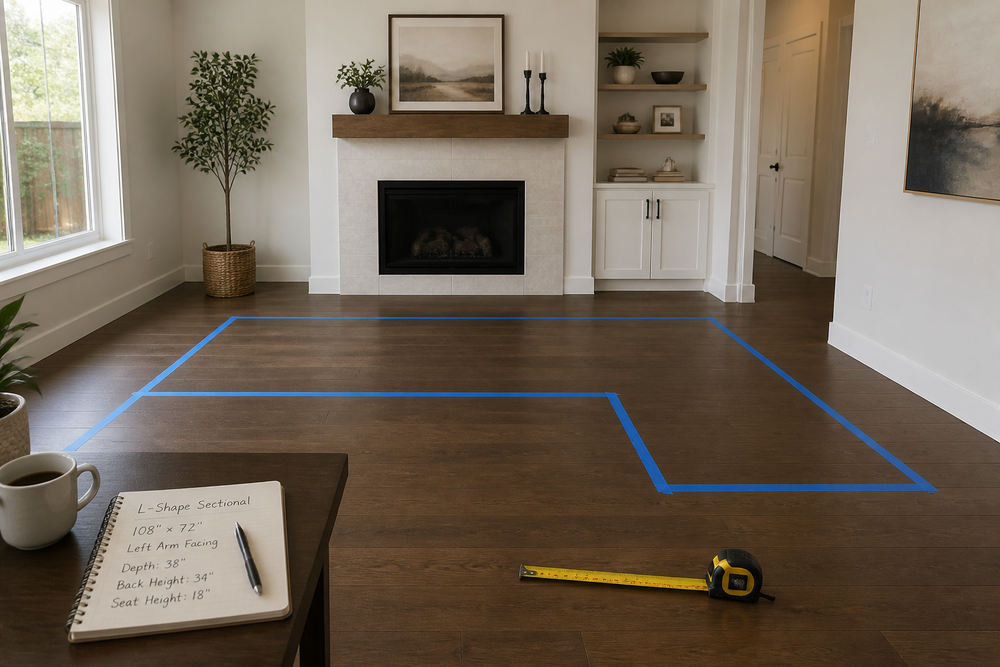

- Use painter's tape to outline the sectional footprint on the floor.
Painter's tape is useful because it turns product specs into a visible layout. If the taped outline already feels crowded, the sectional is too large even if the raw measurements technically fit.
If you are comparing shapes, reviewing a broader set of sectional sofas can help you see how chaise lengths and corner layouts change the footprint.
How to measure a sectional sofa correctly
Use the product specifications, but also understand what each number represents. Different brands may list dimensions in slightly different orders, so confirm which side is the longer run and which side is the projecting section.
Measure overall width
Measure from the farthest outside point on one side to the farthest outside point on the other side. Include arms if they extend beyond the seat.
Measure overall depth
For the main seating section, measure from the back edge to the front edge. On some sectionals, the chaise side will be much deeper than the sofa side, so both numbers may matter.
Measure chaise or return length
Measure from the back of the sectional to the front edge of the projecting side that extends farthest into the room. This dimension often determines whether the piece blocks circulation.
Measure height
Measure from floor to the tallest point of the back. Height matters when placing a sectional under windows or when trying to keep sight lines open across a room.
Measure diagonal depth for delivery
Diagonal depth is the straight-line distance from the top rear corner of the frame to the lower front edge. This measurement helps determine whether the piece can tilt through a doorway or hallway during delivery.
If you are also comparing standard sofas while planning room size, a quick look at sofas can provide a useful baseline for width and depth differences.
Standard sectional size ranges
Sectionals vary by design, but common size ranges can help narrow the search. These are general planning ranges, not fixed standards.
| Sectional type | Typical width | Typical depth | Typical projecting length |
|---|---|---|---|
| Small 2-piece sectional | 78 to 94 inches | 34 to 40 inches | 58 to 65 inches |
| Standard L-shaped sectional | 95 to 110 inches | 35 to 40 inches | 65 to 90 inches |
| Large sectional | 111 to 130 inches | 36 to 42 inches | 85 to 100 inches |
| U-shaped sectional | 120 to 170 inches | 35 to 42 inches | 120 inches or more overall span |
These ranges are useful for planning only. Always rely on the exact product dimensions before buying, because arm style, wedge corners, and modular add-ons can change the final footprint significantly.
Clearance rules that help a sectional fit better
A sectional should fit the room without interrupting basic movement. Clearance planning is usually more important than trying to maximize seating at any cost.
- Leave about 30 to 36 inches for major walkways.
- Keep enough space for a coffee table, often 14 to 18 inches from the seat edge.
- Allow doors, drawers, and recliner mechanisms to open fully.
- Avoid covering floor vents and return air openings.
- Check that the projecting side does not trap entry paths.
If the sectional includes reclining seats, footrests need extra forward space when open. In that case, reviewing recliners can help illustrate how motion furniture typically needs more operating clearance than fixed seating.
Do not forget delivery dimensions
A sectional that fits the room can still fail to fit through the home. Delivery problems often come from narrow apartment hallways, stair landings, entry doors, elevators, or tight turns.
Measure every point on the path from the exterior door to the final room. Record door width and height, hallway width, stair width, ceiling height on turns, elevator interior size, and banister obstructions.
Compare those numbers with each sectional piece, not just the assembled dimensions. Modular and apartment-size sectionals are often easier to deliver because the components separate into smaller units.
For homes where dual-use furniture is under consideration, sleeper sofas may also be worth comparing because delivery dimensions and open-floor requirements can differ from sectionals.
Common measuring mistakes to avoid
Most fit issues come from a small number of preventable mistakes. Checking them in advance reduces the chance of ordering a sectional that is technically the right style but the wrong size.
- Measuring only one wall and ignoring the projecting side.
- Forgetting baseboards, window trim, or radiators.
- Ignoring walkway space around the chaise or return.
- Using assembled dimensions without checking individual piece dimensions for delivery.
- Not confirming whether the sectional is left-facing or right-facing.
- Overlooking nearby furniture such as coffee tables that share the same floor area.
Left-facing and right-facing descriptions can vary by retailer definition, so review the product diagram carefully. The orientation should match the room layout when viewed from the stated reference point in the listing.
A simple checklist before you buy
Before placing an order, confirm these numbers in one list. This prevents confusion between room dimensions, product dimensions, and delivery clearances.
- Room length and width
- Wall space available
- Walkway clearance
- Sectional overall width
- Sectional overall depth
- Chaise or return length
- Height and seat depth
- Individual piece dimensions
- Doorway, hallway, stair, and elevator measurements
- Correct left-facing or right-facing orientation
If all of those measurements work together, the sectional is much more likely to fit the space, function well, and arrive without delivery issues.
FAQ
How much space should you leave around a sectional sofa?
Main walkways usually need about 30 to 36 inches of clearance. Space between the sectional and a coffee table is often about 14 to 18 inches.
What is the most important measurement on a sectional?
The most important measurement is usually the full footprint, especially the chaise or return length. That projection often determines whether the sectional blocks circulation.
How do you know if a sectional will fit through the door?
Measure the width and height of the doorway and compare them with the dimensions of each sectional piece, including diagonal depth. Also measure hallways, stairs, and tight turns along the delivery path.
What is a typical size for a sectional sofa?
A standard L-shaped sectional often falls around 95 to 110 inches wide, with a main depth near 35 to 40 inches. The projecting side is commonly about 65 to 90 inches long, depending on design.
