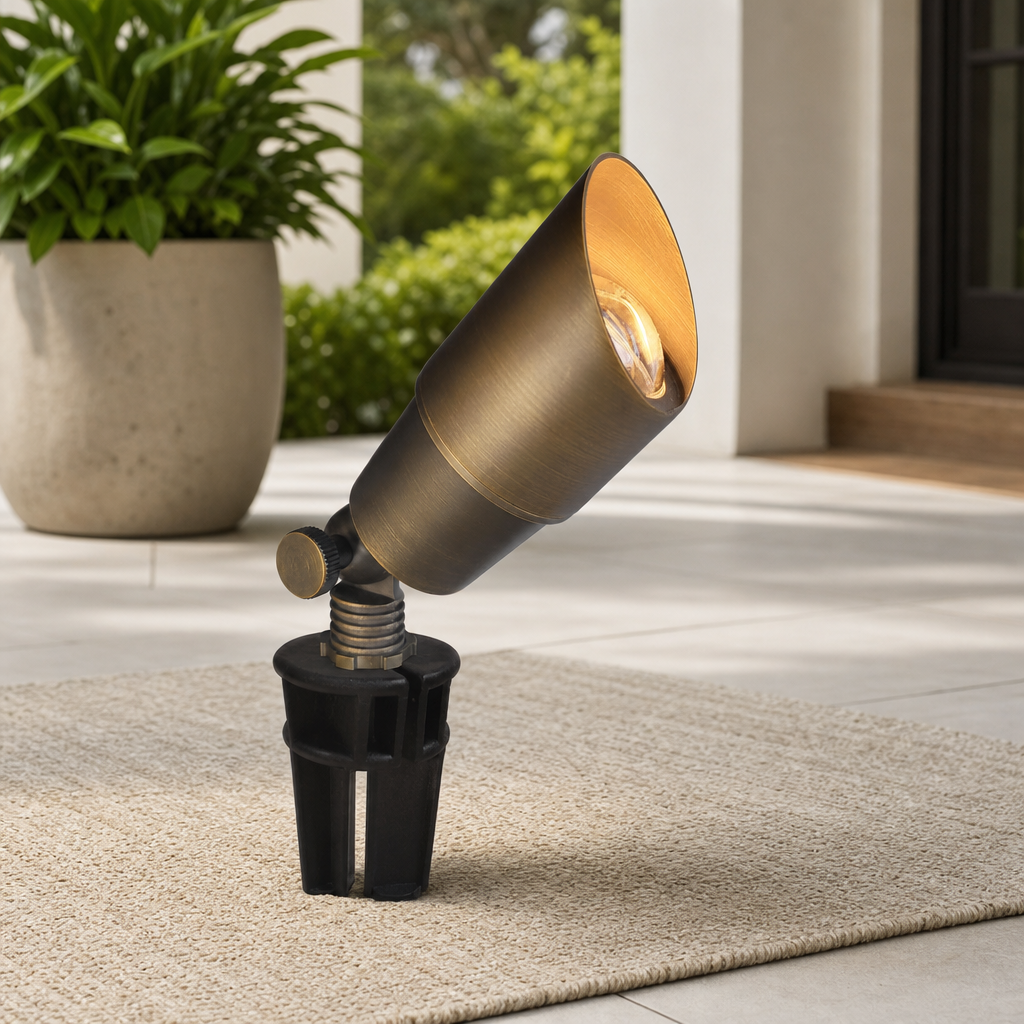

12V Brass Low-Voltage Landscape Spotlight — GU5.3 MR16 Socket, IP65

Overview

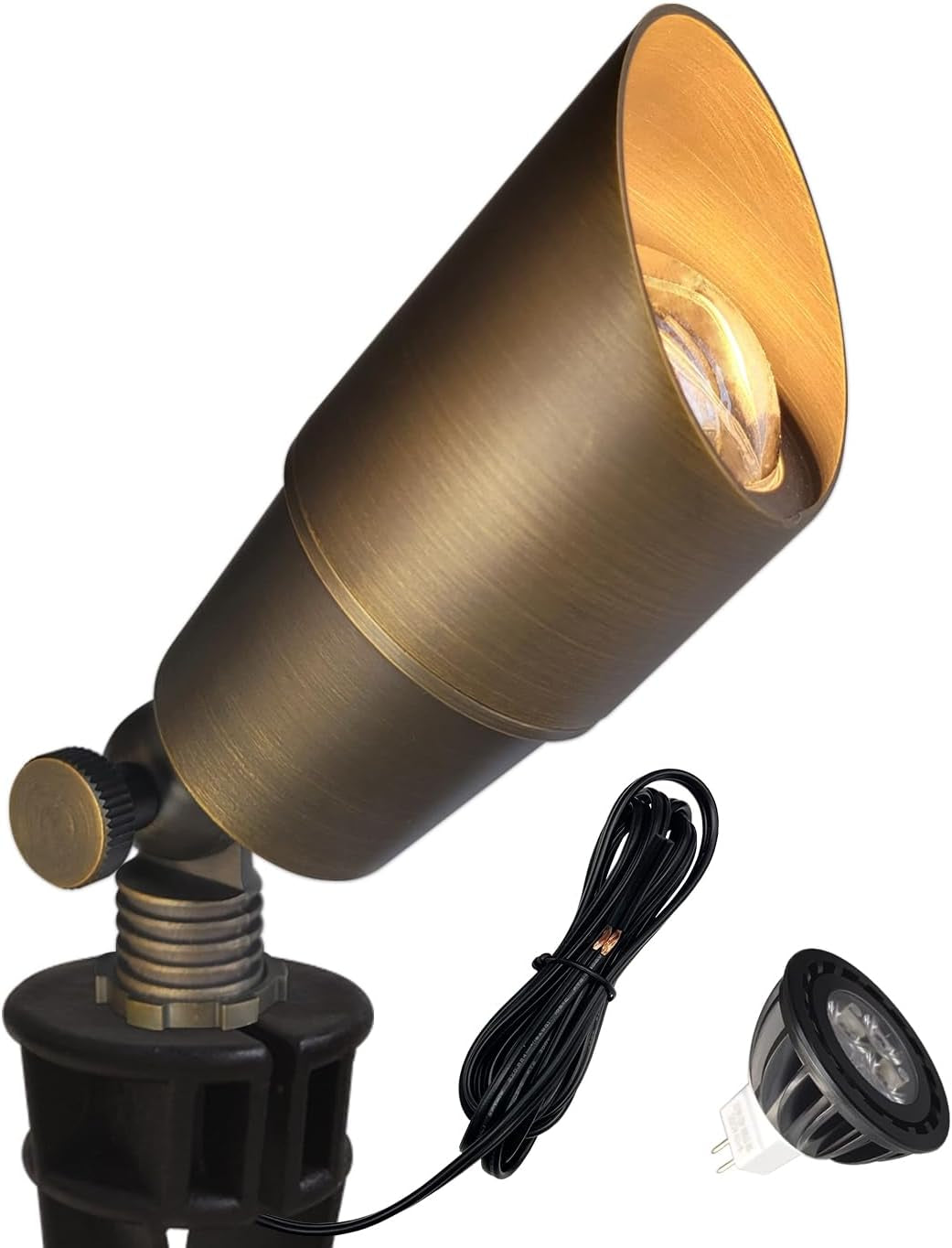

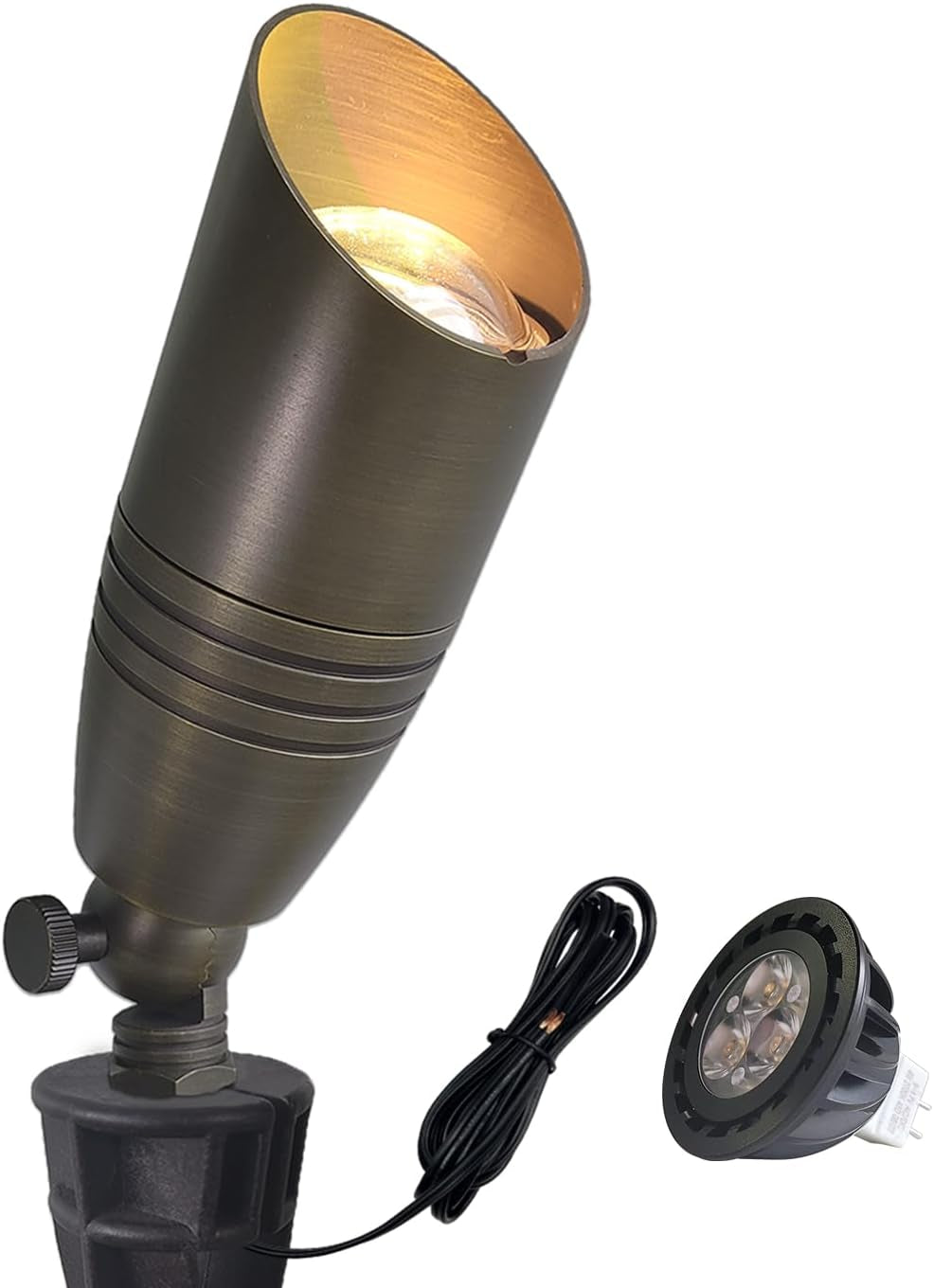

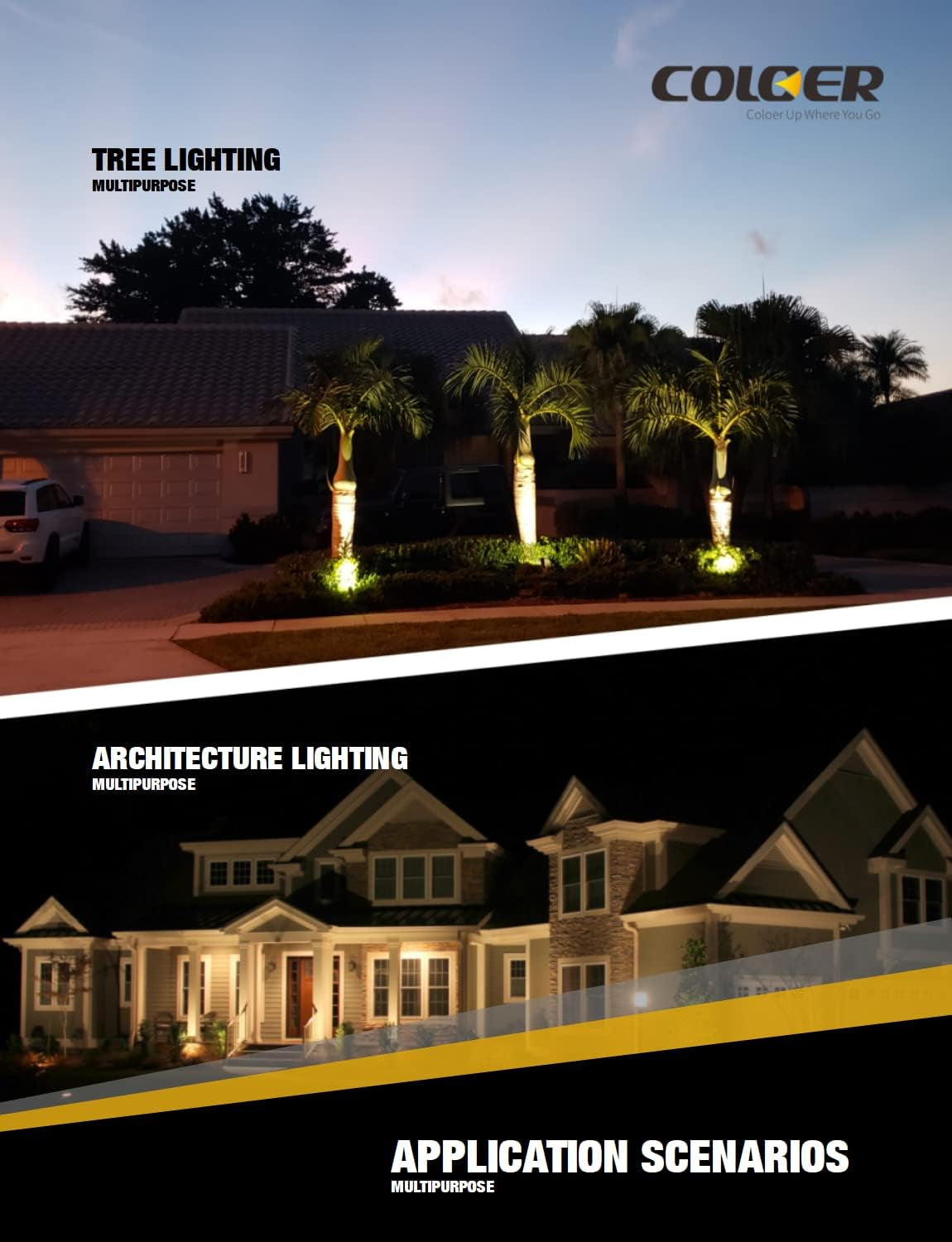

This compact 12V low-voltage landscape spotlight provides focused accent lighting and uplighting for exterior walls, gardens, patios, shrubs and trees. It accepts replaceable MR16 lamps on a GU5.3 bi-pin socket so the lamp can be changed without replacing the fixture, and current “With Bulb” pack options include bulbs rated at 85+ CRI.

Construction & features

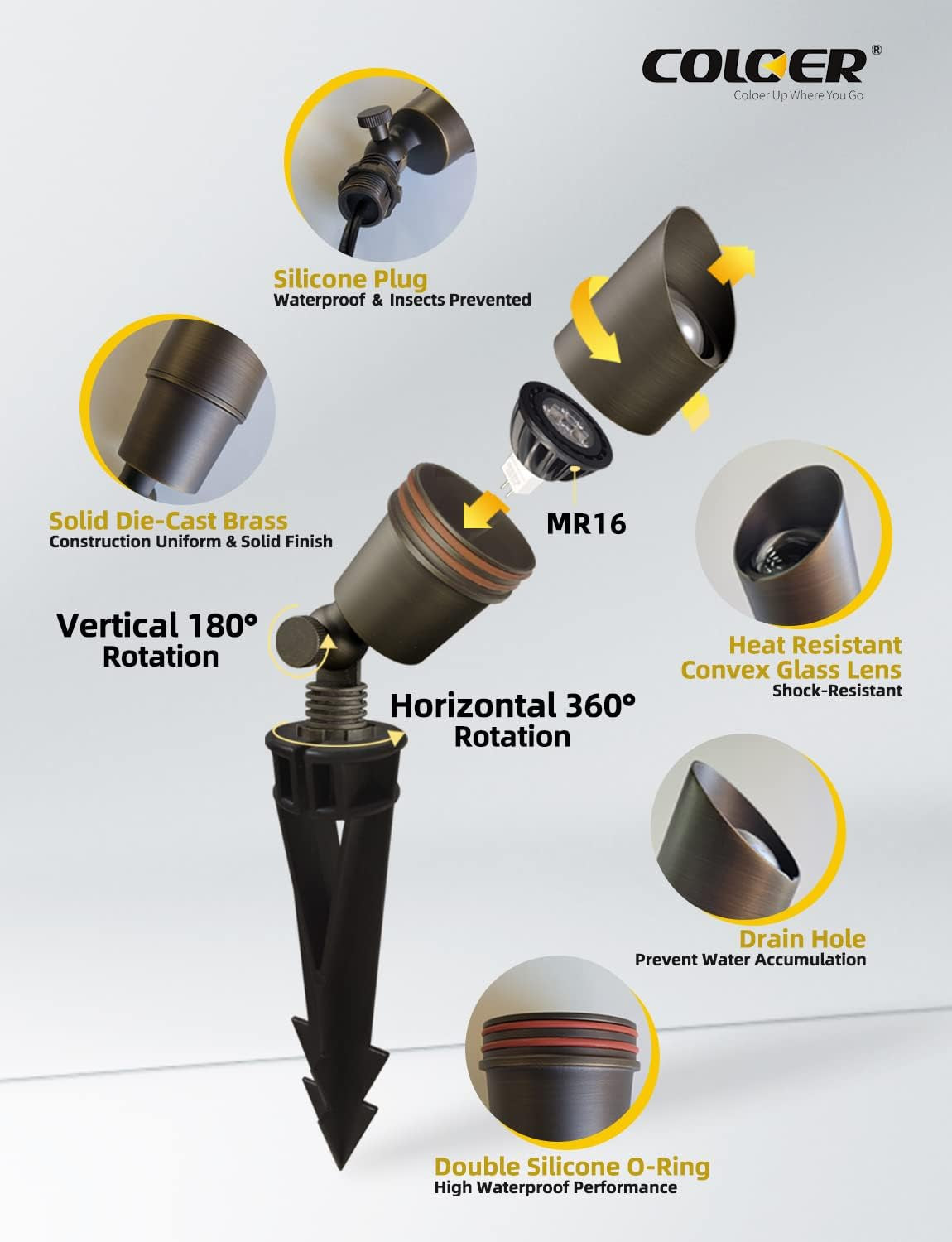

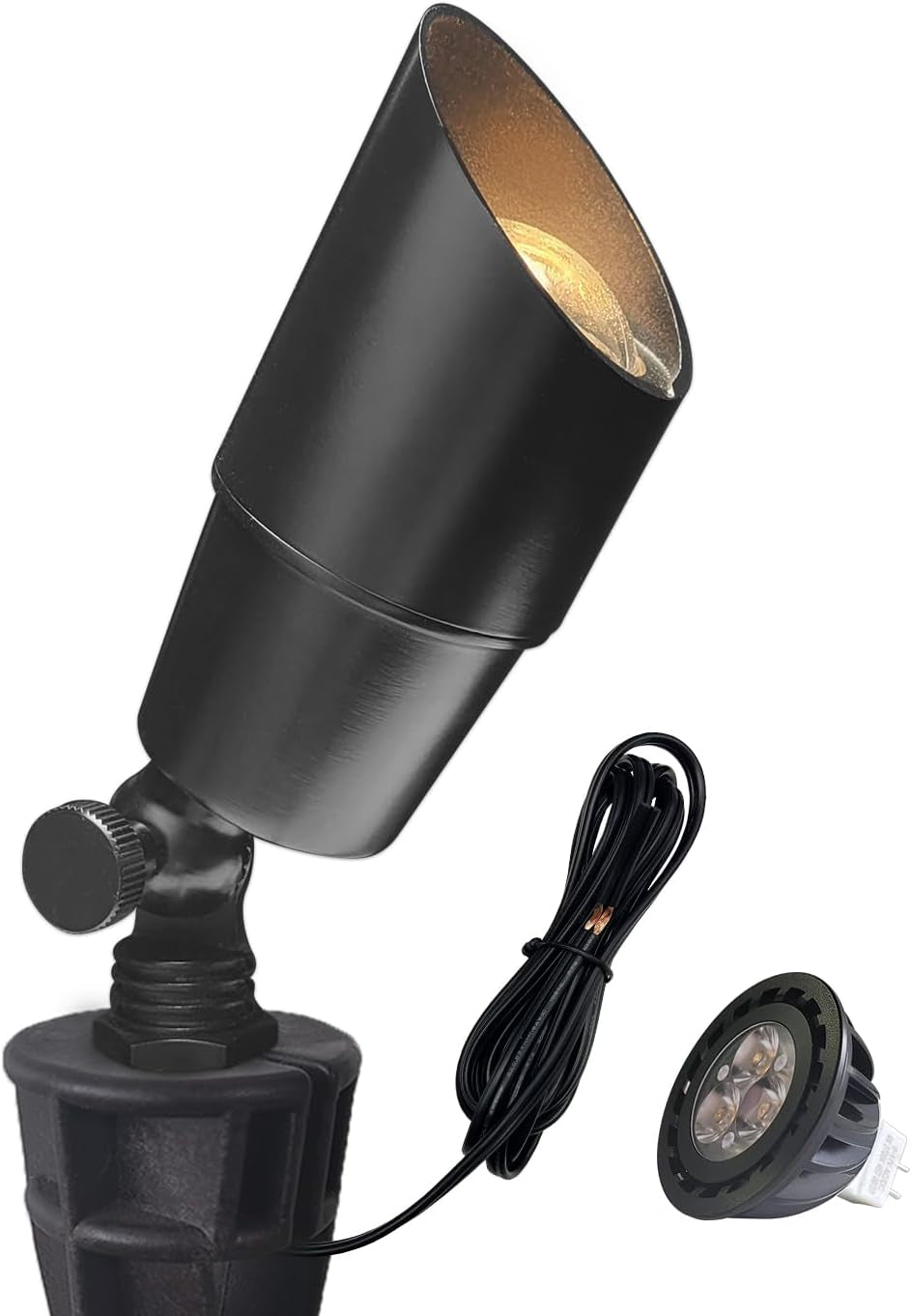

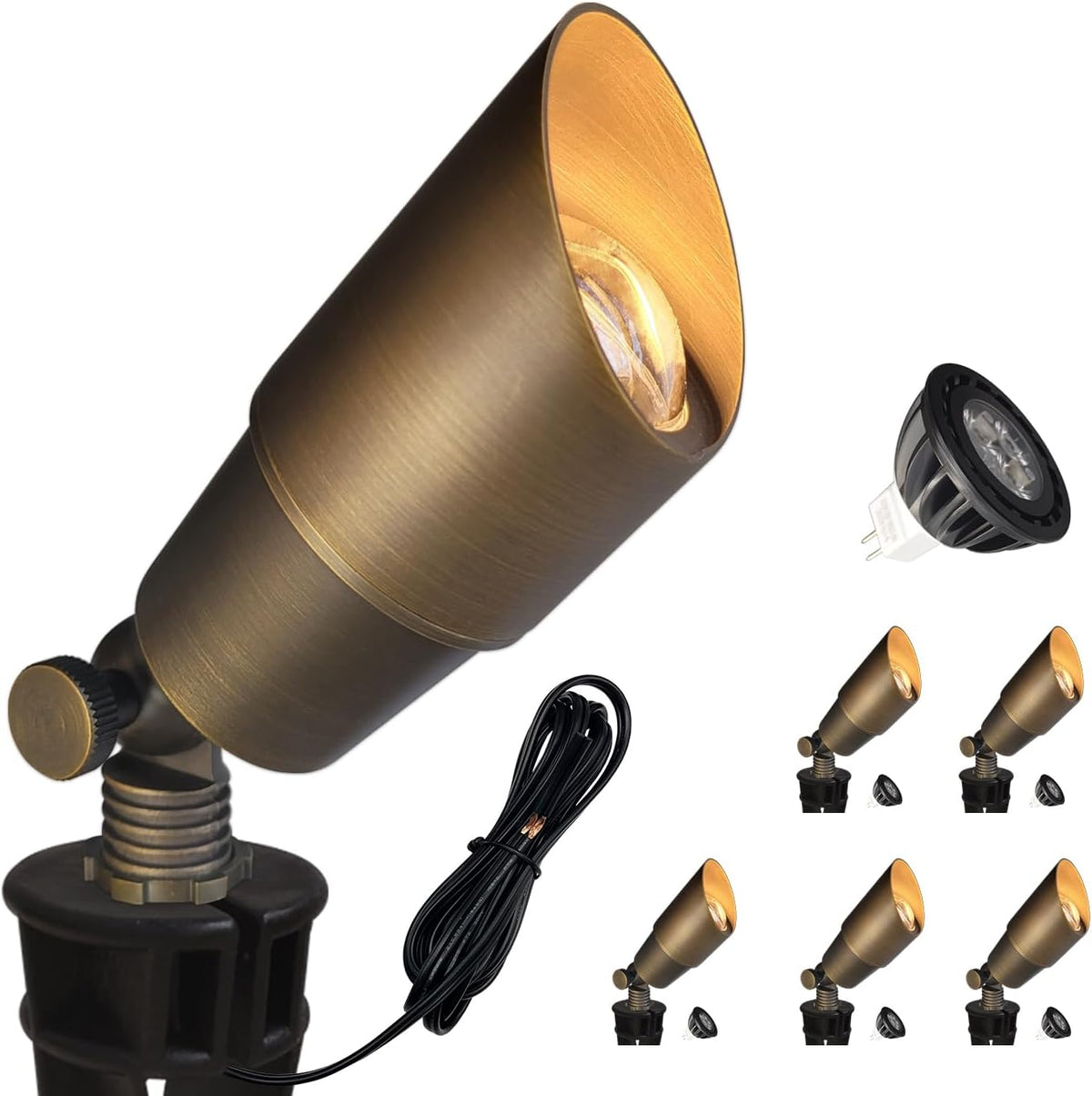

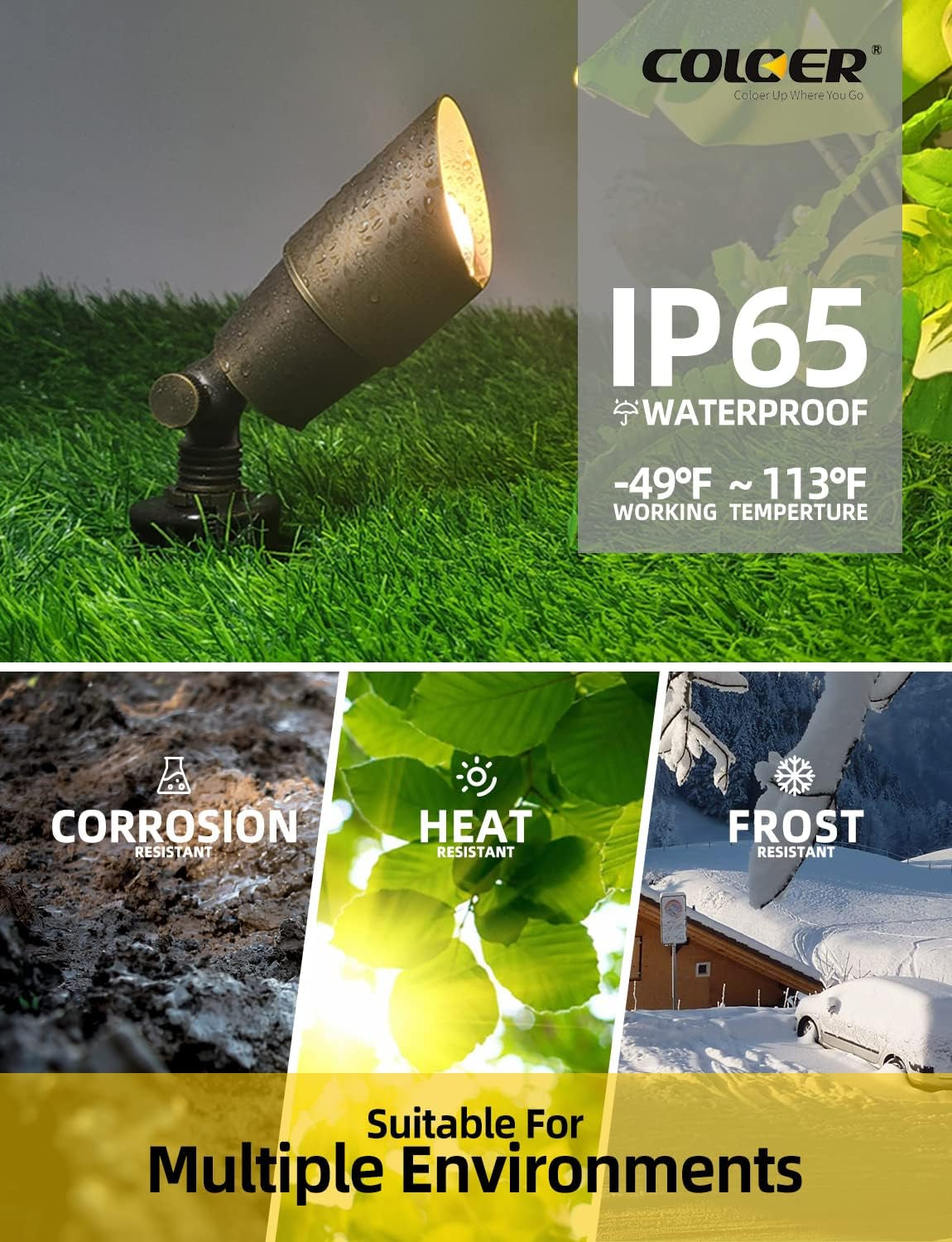

The fixture has a painted die-cast brass housing with high-temperature silicone O-rings and a sealed lead-wire exit to reduce ground-moisture ingress. It is IP65-rated and ETL listed for the spotlight fixture. The head offers a 45° narrow beam angle, up to 180° vertical tilt via the adjustment screw and 360° horizontal rotation by adjusting the ground stake.

Dimensions, electrical & whats included

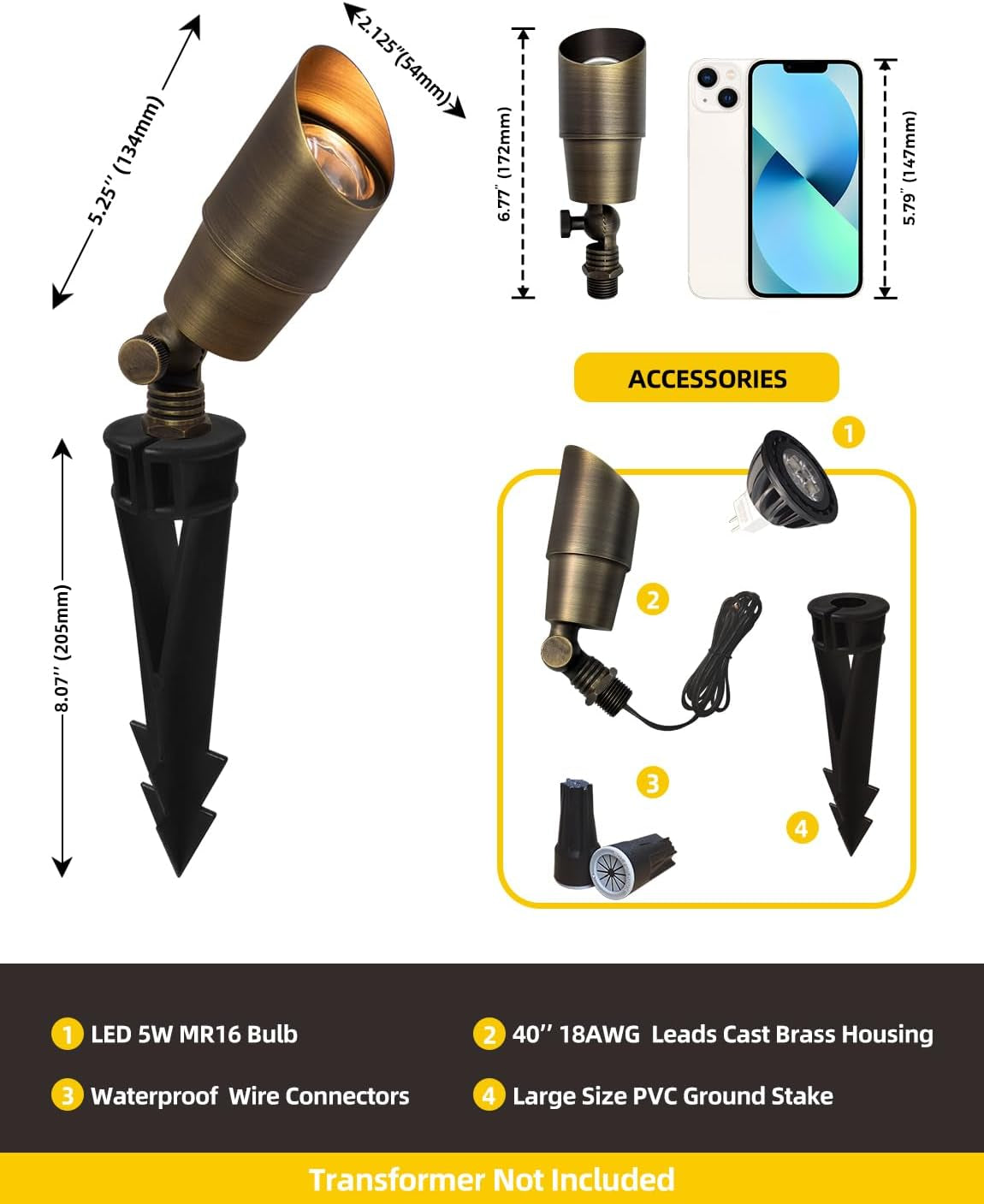

• Fixture length: 5.25 in.; fixture body diameter: 2.125 in.
• Attached lead wire: approximately 40 in., 18 AWG copper.

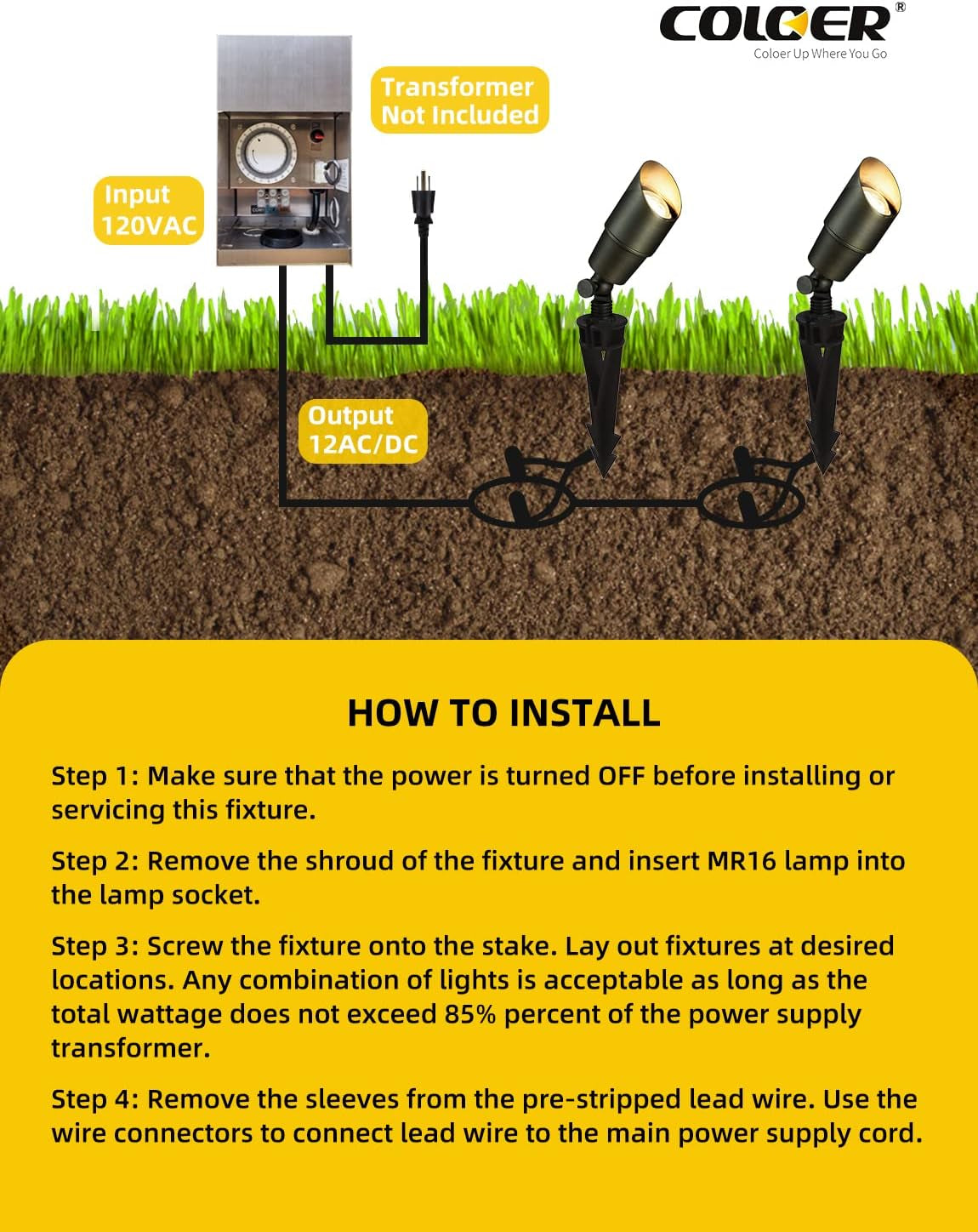

• Operating voltage: 12V AC/DC low-voltage system; designed to be powered by a compatible 9–17V low-voltage transformer (transformer not included).

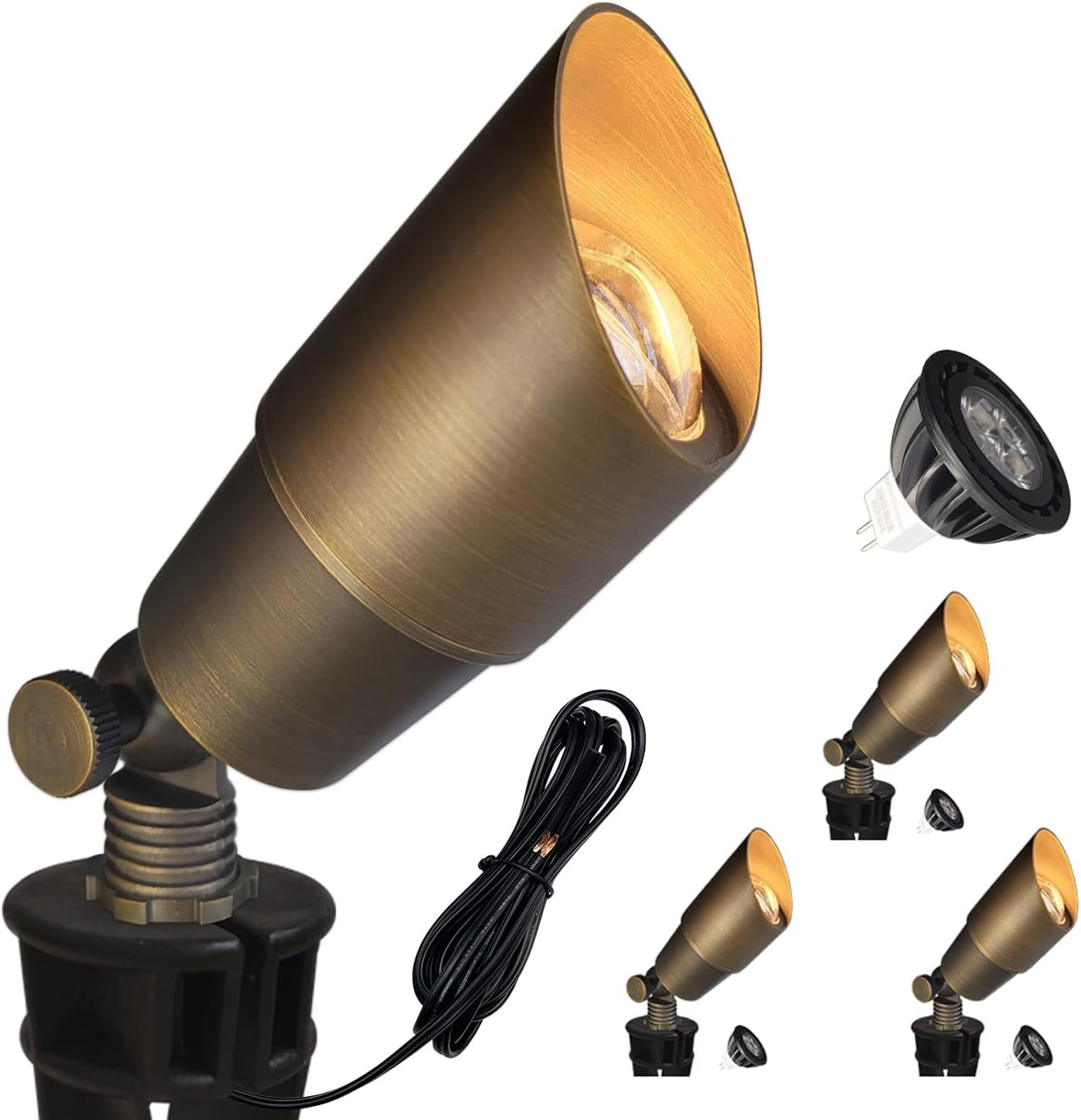

• Each fixture includes the spotlight housing, heavy-duty cleated PVC ground stake and attached lead wire; bulbs are included with the current With Bulb options.

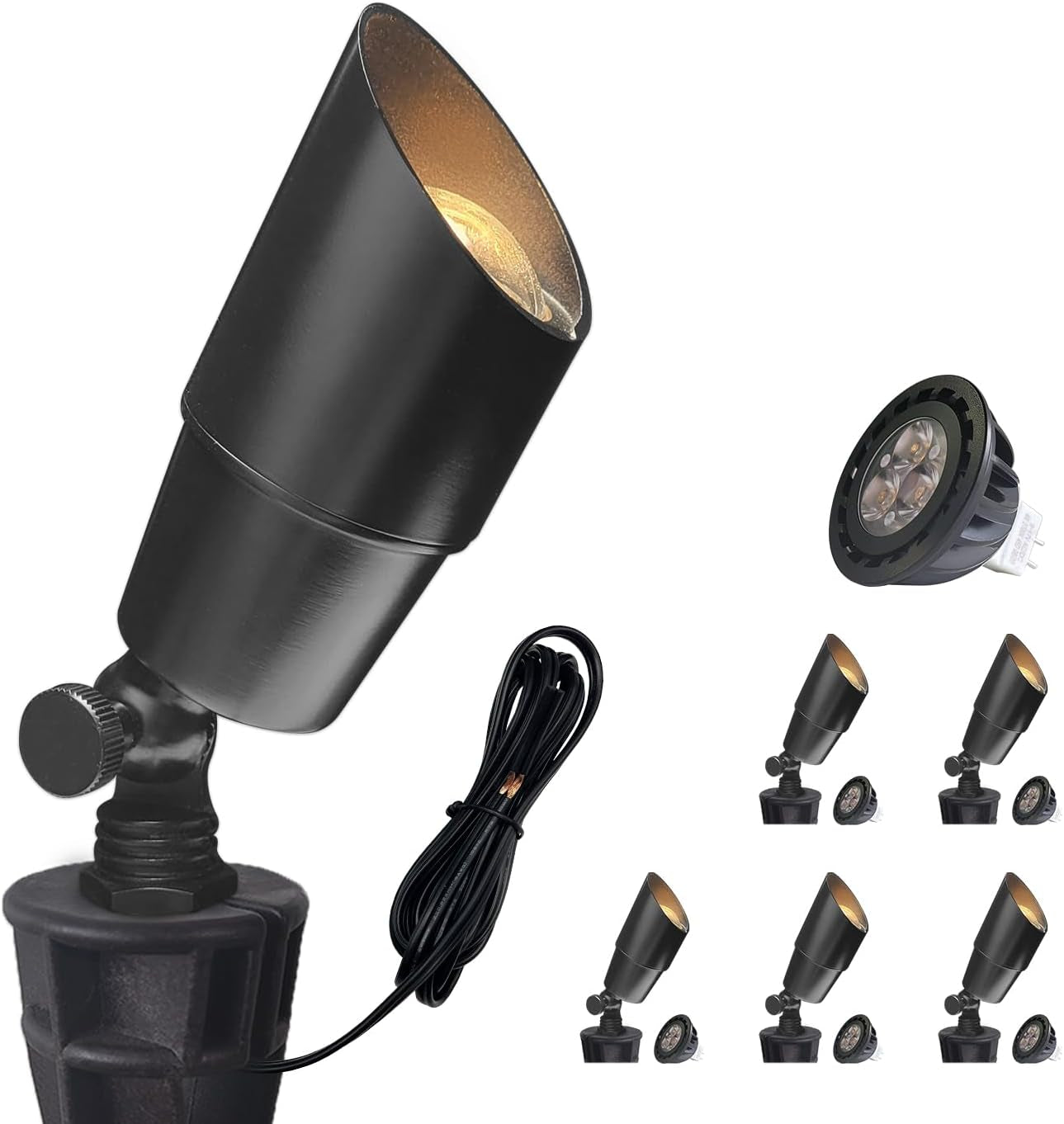

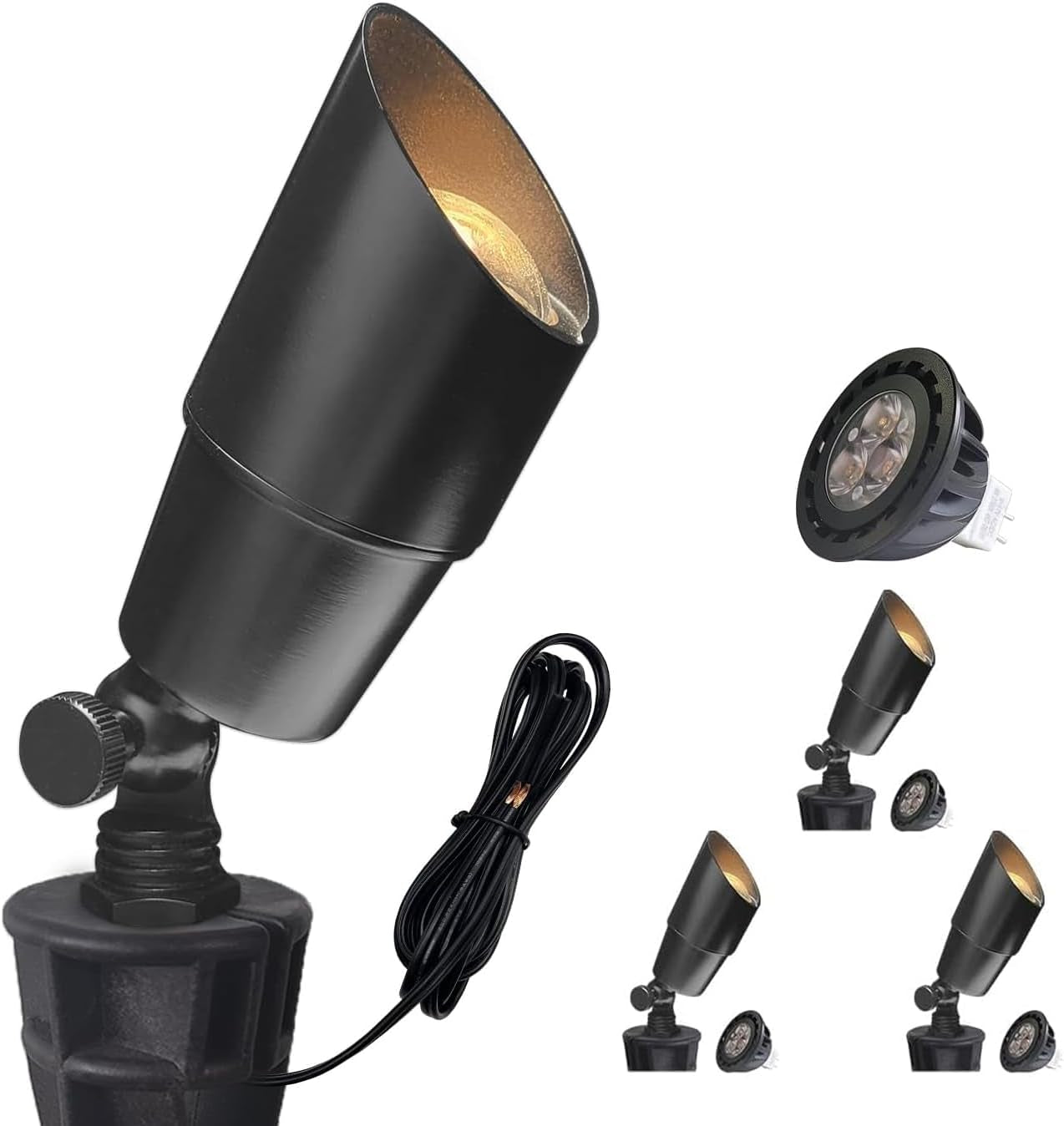

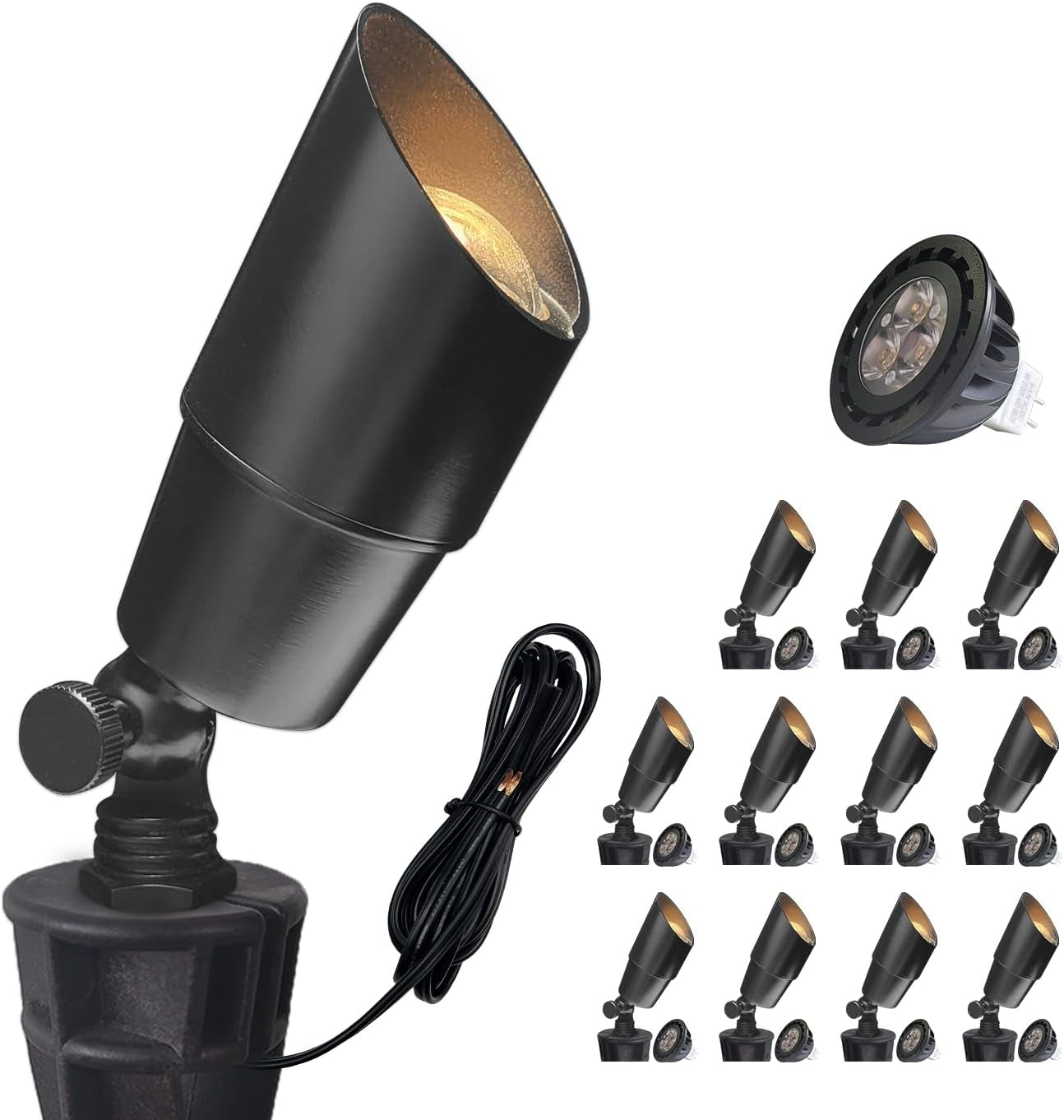

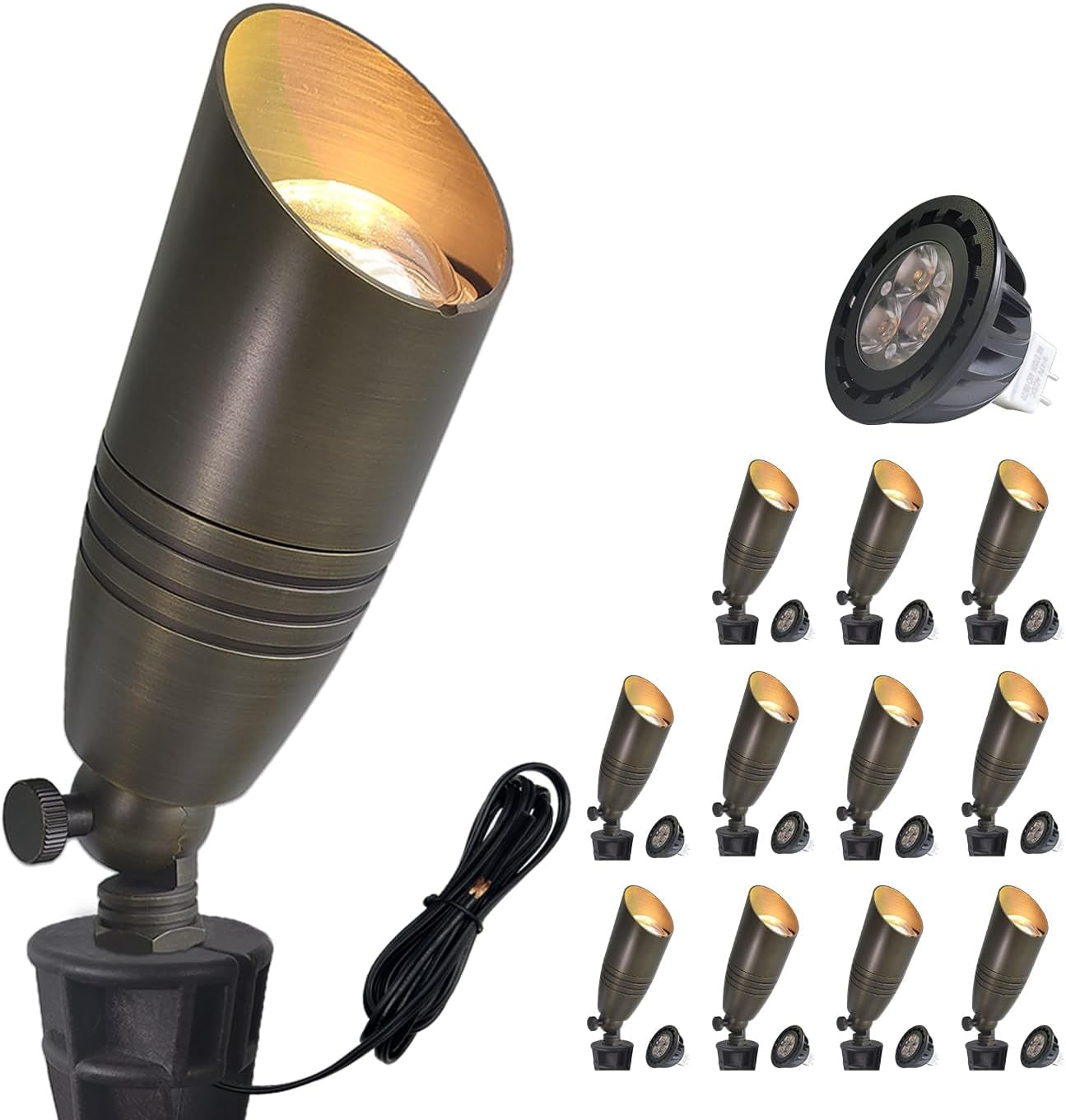

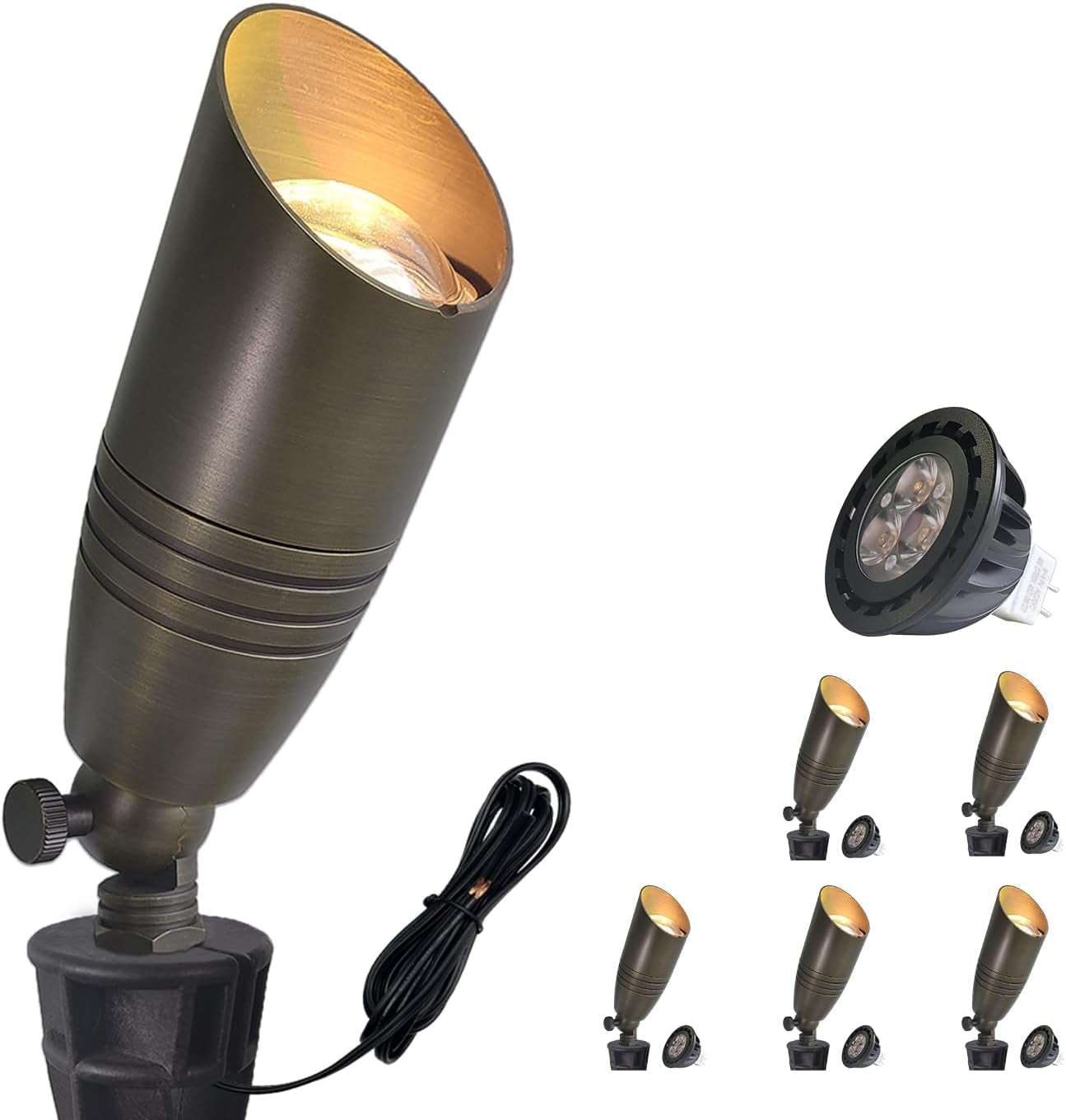

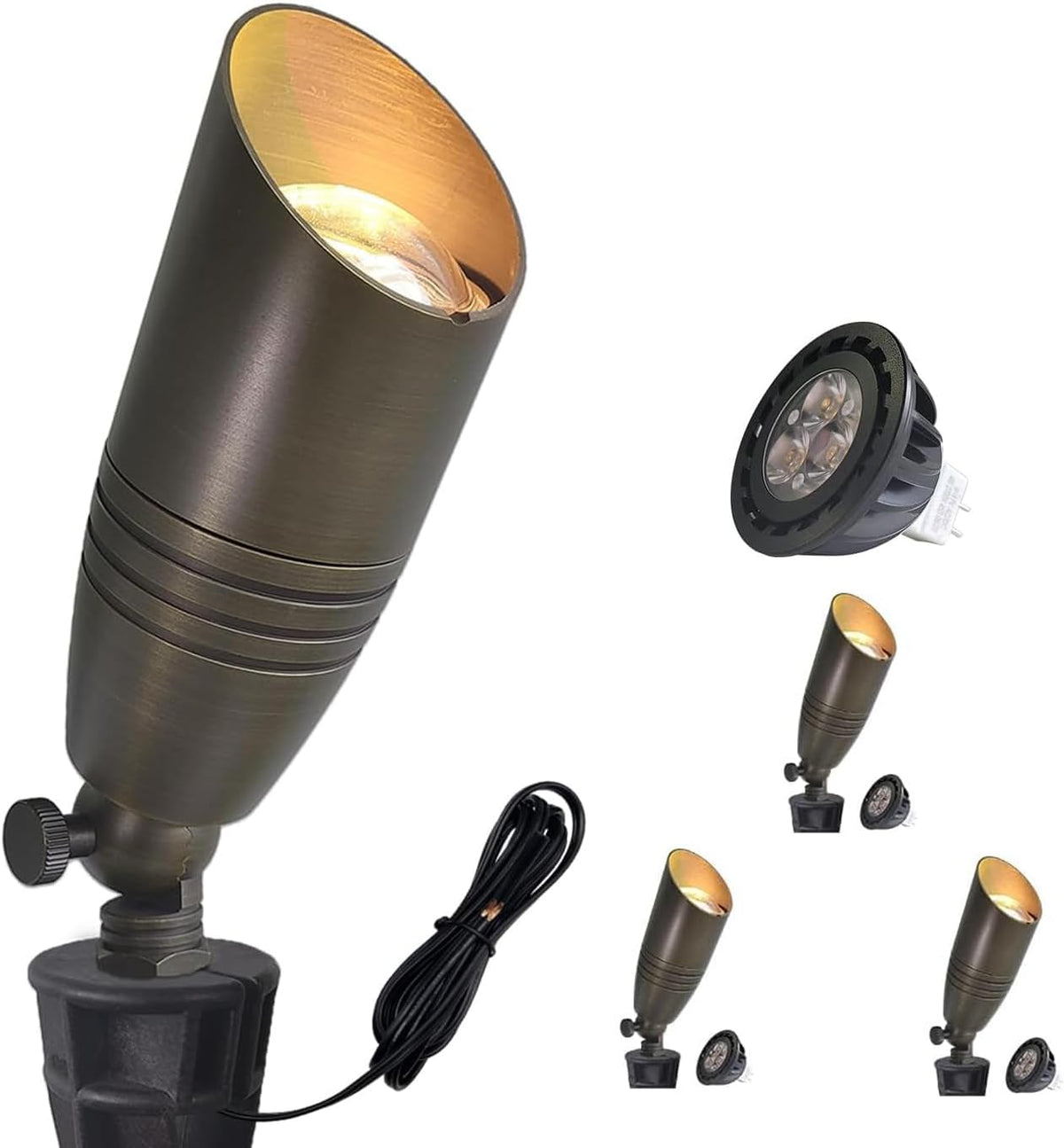

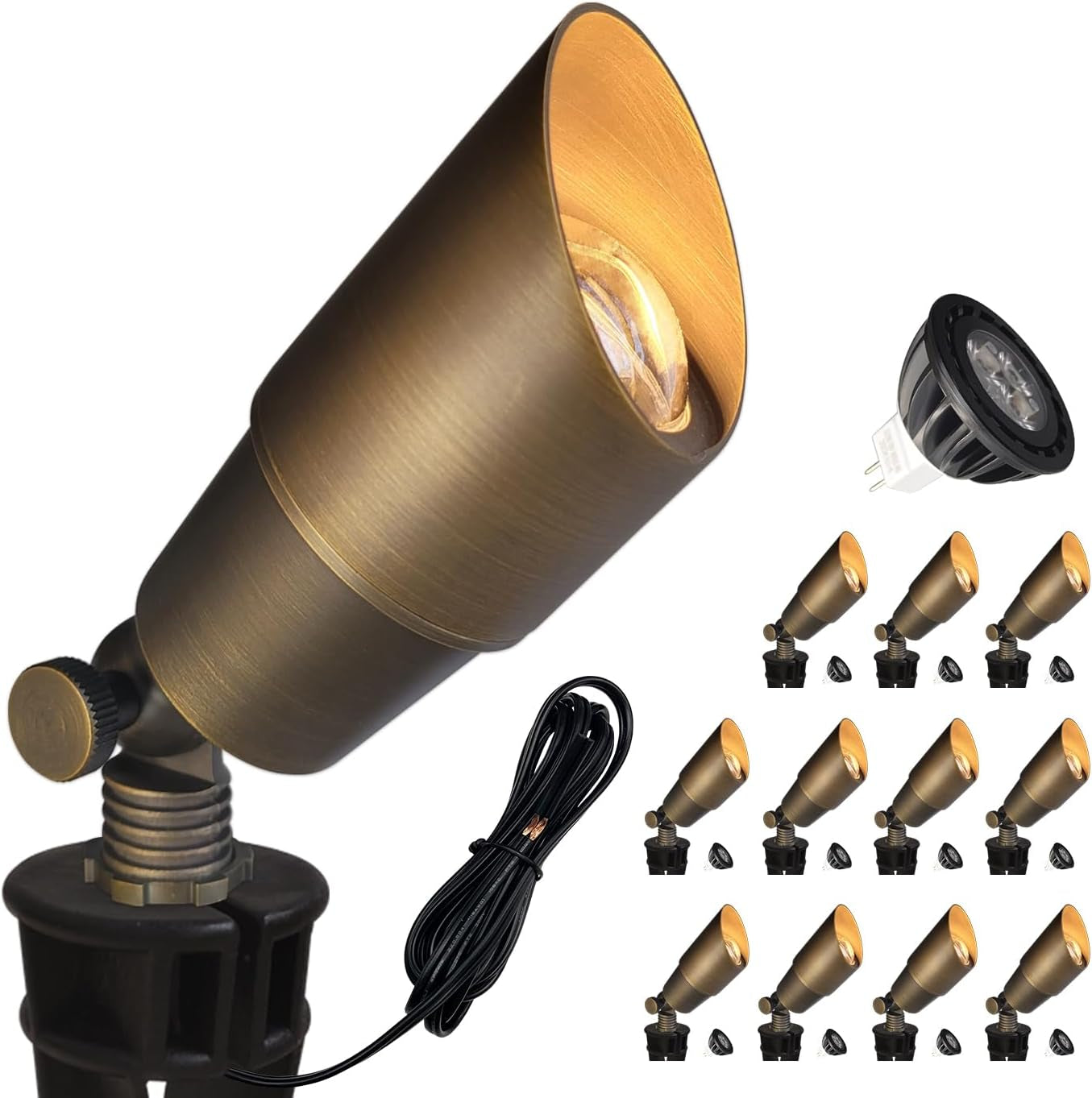

• Available in multiple color and pack options.
